Episode 42: Pterosaur aerodynamics

Palaeontology is more than just going out into the field, digging up bones, and putting them back together. A good understanding of biology, geology, and even engineering can help to figure out how extinct animals lived and especially how they moved around.

To further comprehend how we can use knowledge of engineering in palaeontology, especially with respect to understanding extinct animal flight, we spoke to Colin Palmer from the University of Bristol, and the University of Southampton. His background in engineering provides a unique set of skills and angle to studying pterosaur flight.

Play
Flying azhdarchid Witton 2015 low res

‘Generic’ azhdarchid pterosaur, similar to Quetzalcoatlus. Image courtesy of Mark Witton.

CFD modelling

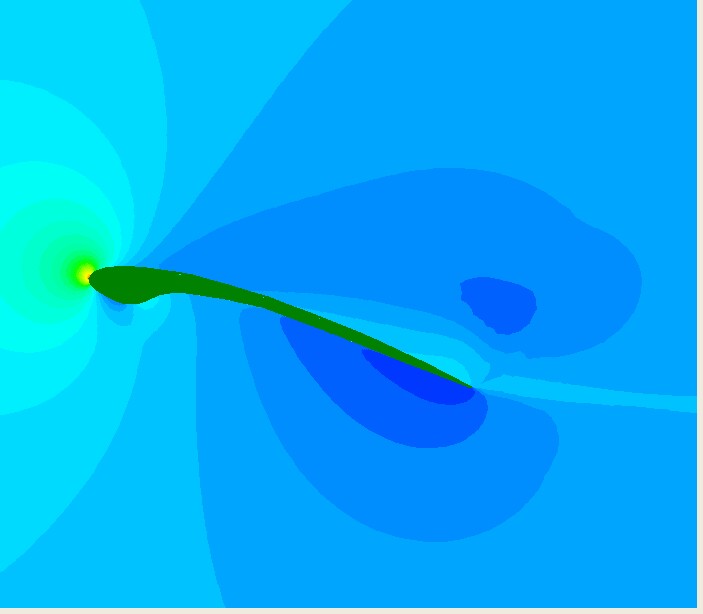

Using 2D computational fluid dynamic (CFD) modelling to understand the effects of different wing section shape and wing geometry. This shows how air moves around the shape in question.

More CFD modelling

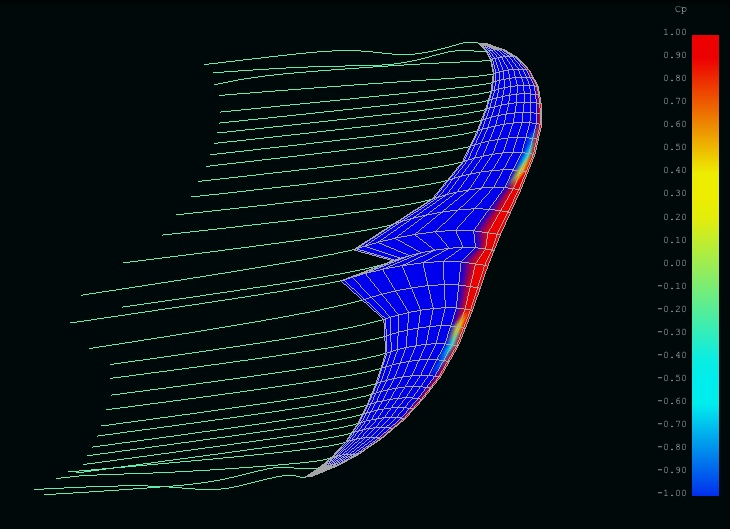

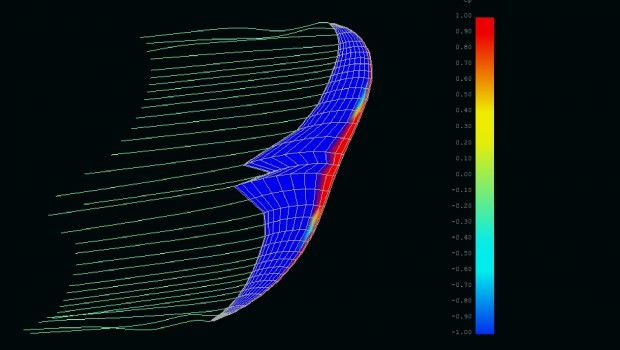

3D CFD model to understand the effects of different wing section shape and wing geometry. The red areas indicate where the wing is under the highest pressure (at the front and in the middle of the pterosaur).

Pterosaur articulated model

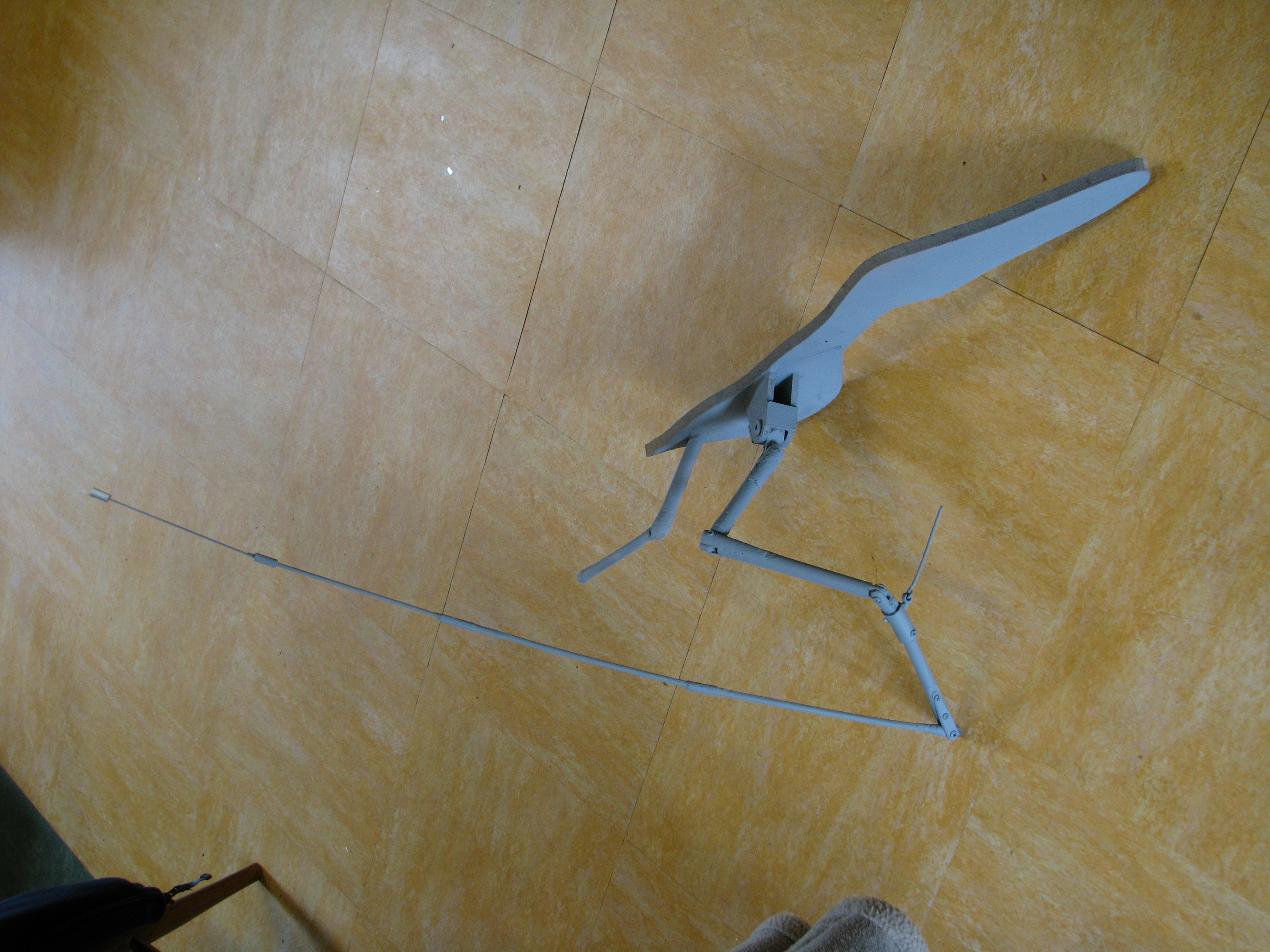

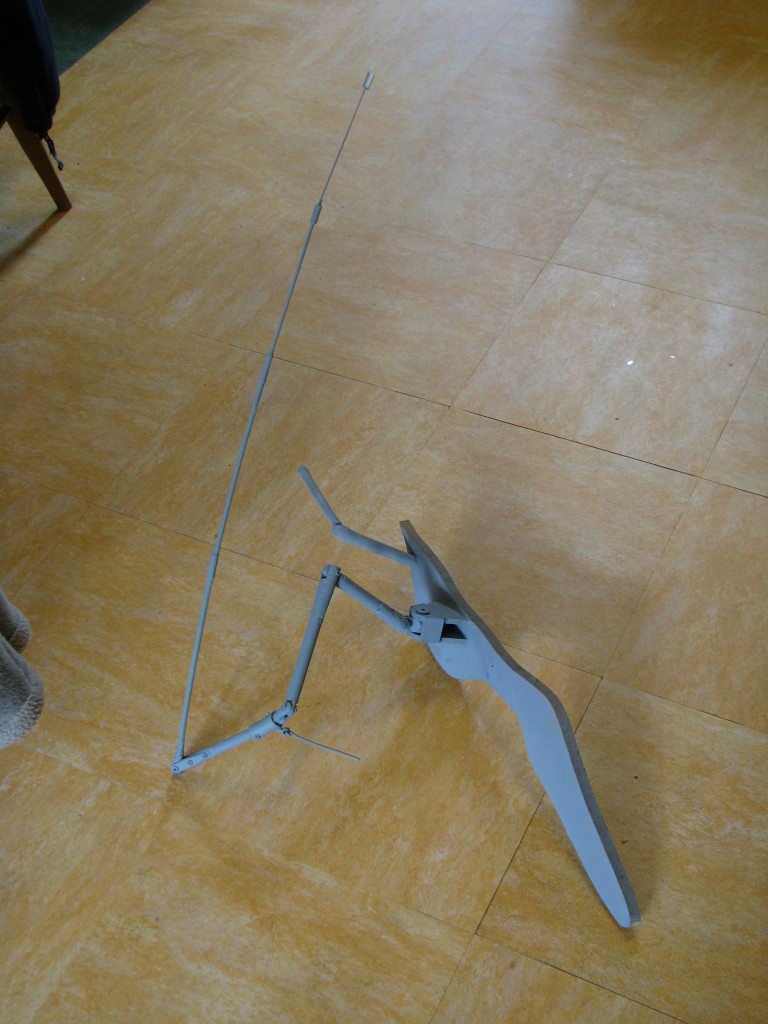

Using simple models to visualise the wing articulation of a pterosaur. This represents (from the body moving towards the end of the wing) the humerus, radius/ulna, long wing metacarpal and pteroid, and wing phalanges 1-4.

Simple articulated model

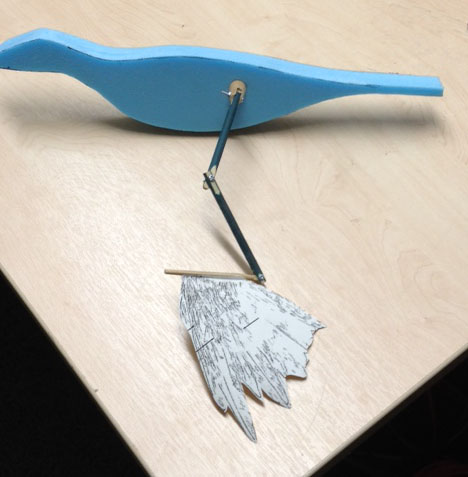

Model to ascertain the possible geometry of the hind limbs of Microraptor.

Mike Habib

Mike Habib, one of Colin’s collaborators specialising on the quadrupedal launch and giant size of pterosaurs, getting friendly with a Diatryma.

Making the membrane wing model

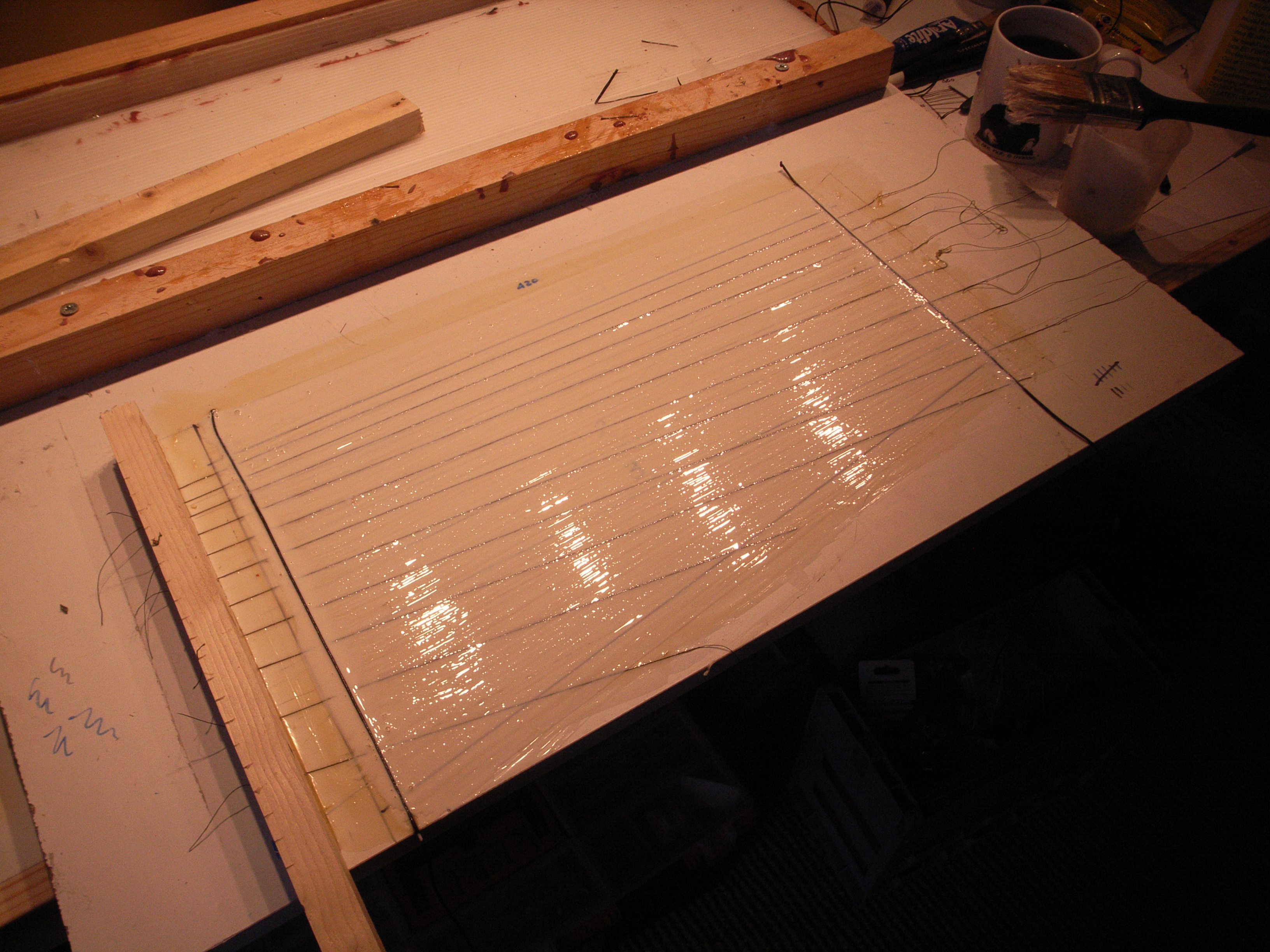

Using cotton thread and latex rubber to make a wind tunnel model of a pterosaur wing membrane. More recently found fossils have shown us that pterosaur wings were stiffened with long fibers called actinofibrils, represented by the cotton thread.

Membrane model in the wind tunnel

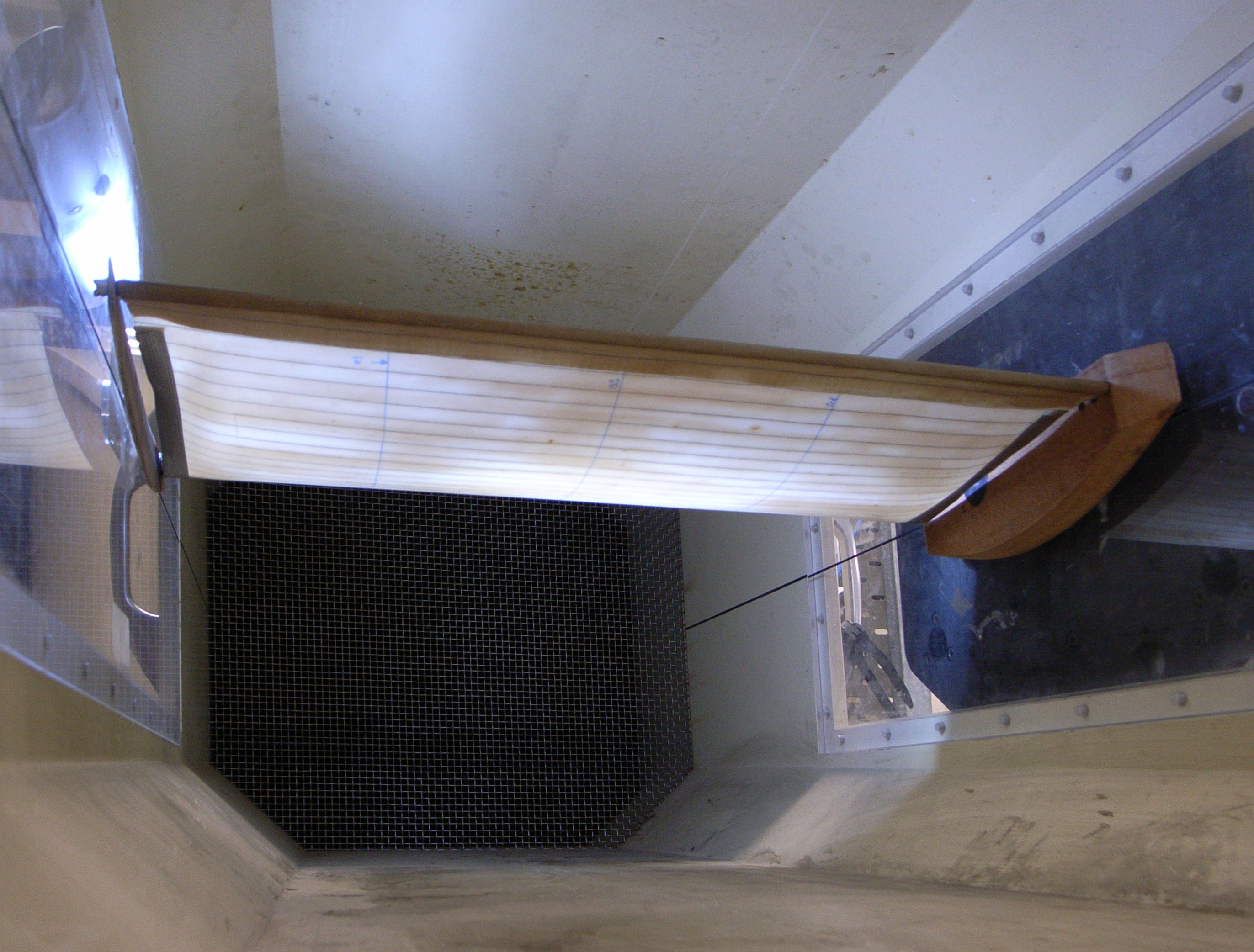

The model in the wind tunnel which allows us to see how it would have behaved under different wind conditions, and start to understand the method of flight.

IMG_0374

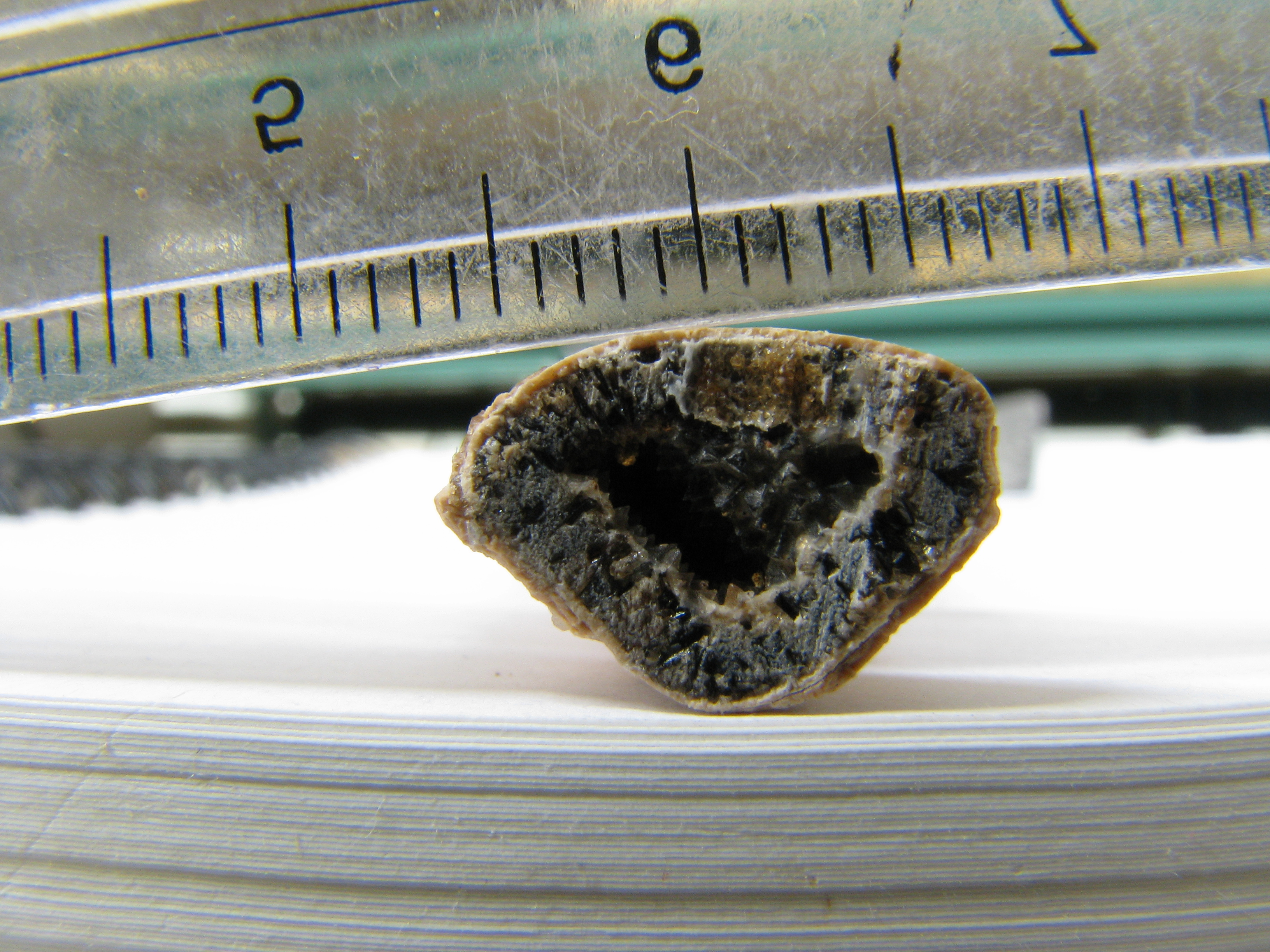

Different methods by which to understand the cross section of a wing phalanx (wing finger bone – note the extremely thin bone walls!): By simply photographing a broken section…

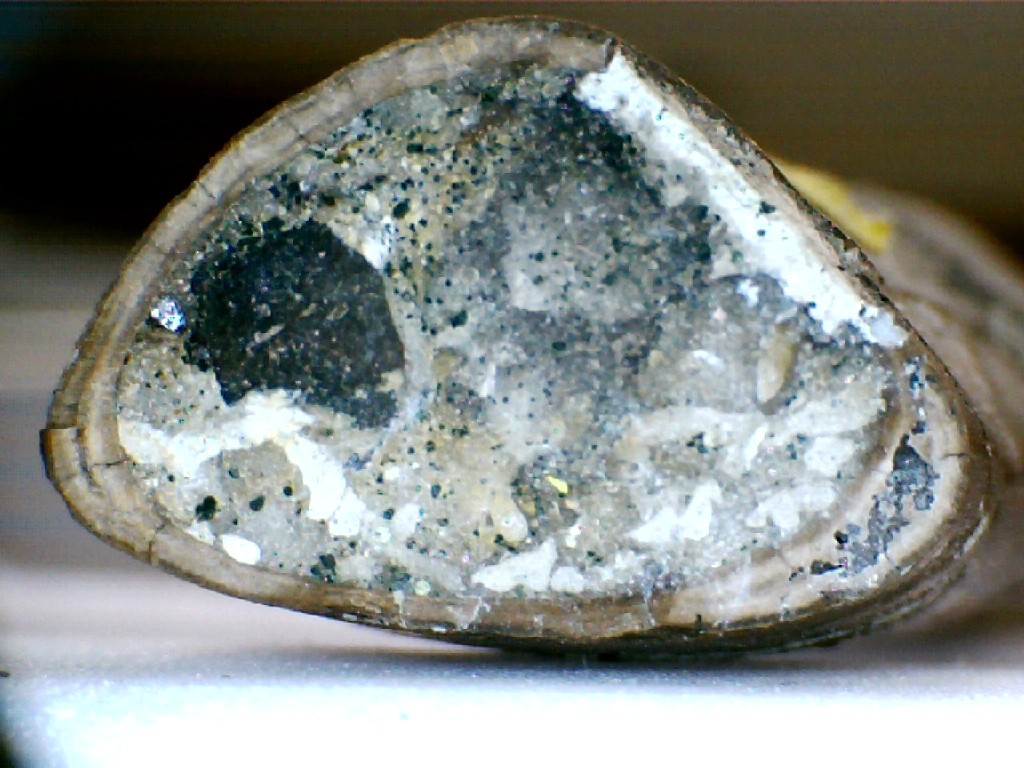

NHM 33228 02

…using a thin section (thanks to Lorna Steel)…

CT scan

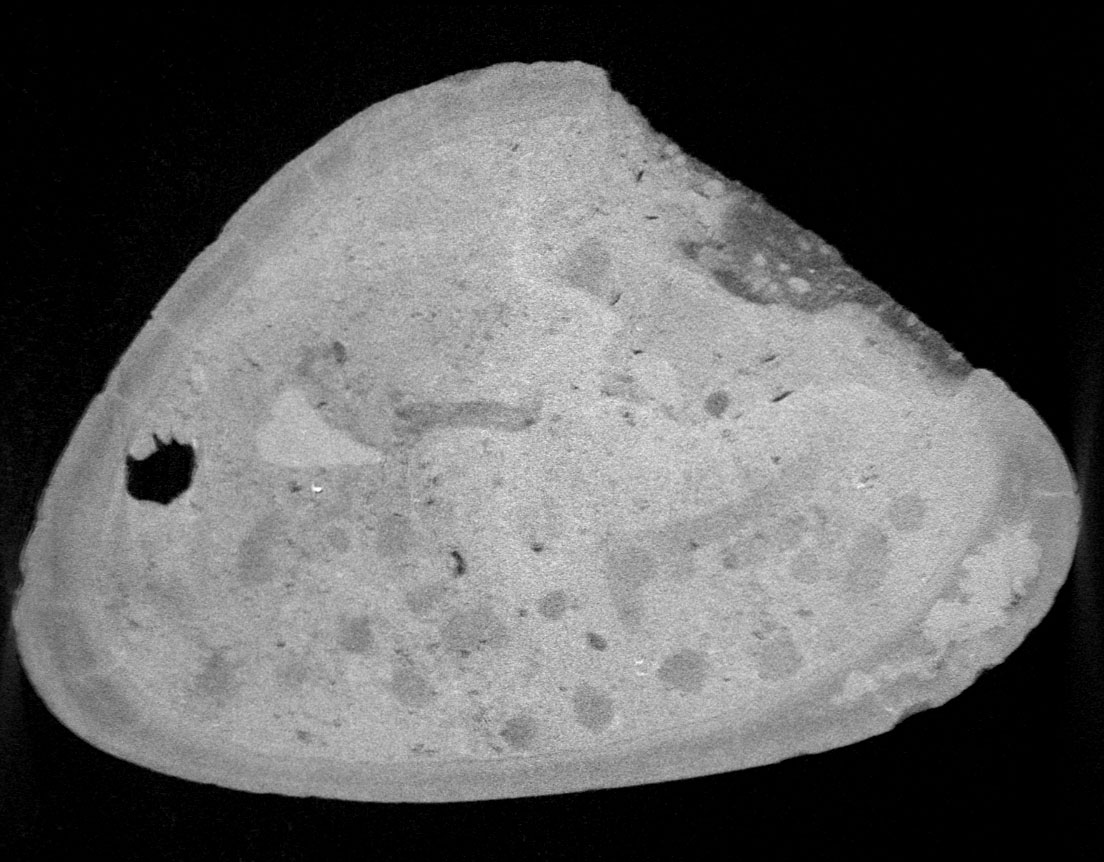

…or CT scan. New tools for analysing fossils have been rapidly employed within just a few years.

Microraptor results

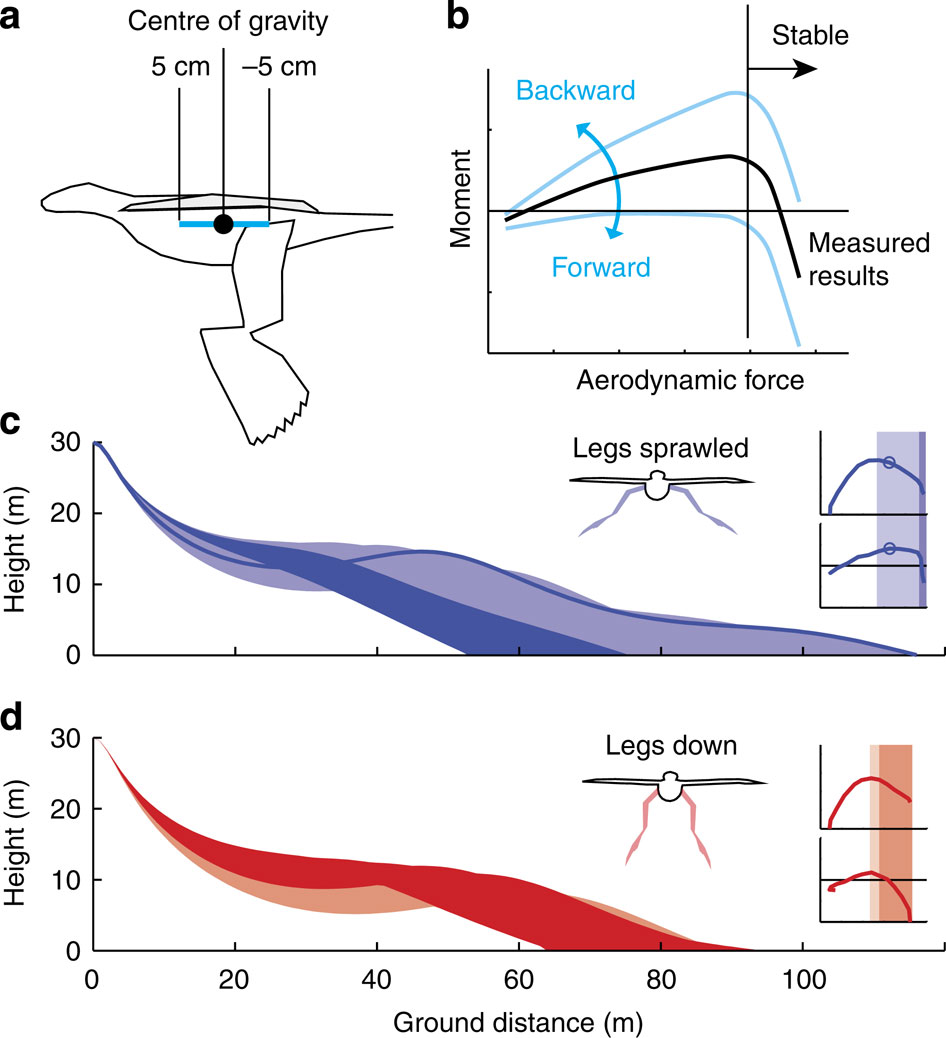

Results from Dyke et al. (2014) study in Nature Communications on Microraptor flight showing the change in centre of gravity (a) and the effect of the change (b); and the effect of changing the position of the legs from sprawling (c) to down (d). This study showed that the most aerodynamically likely position was with the legs down as the darker shaded part allows for a further stable glide.

Maurice the microraptor

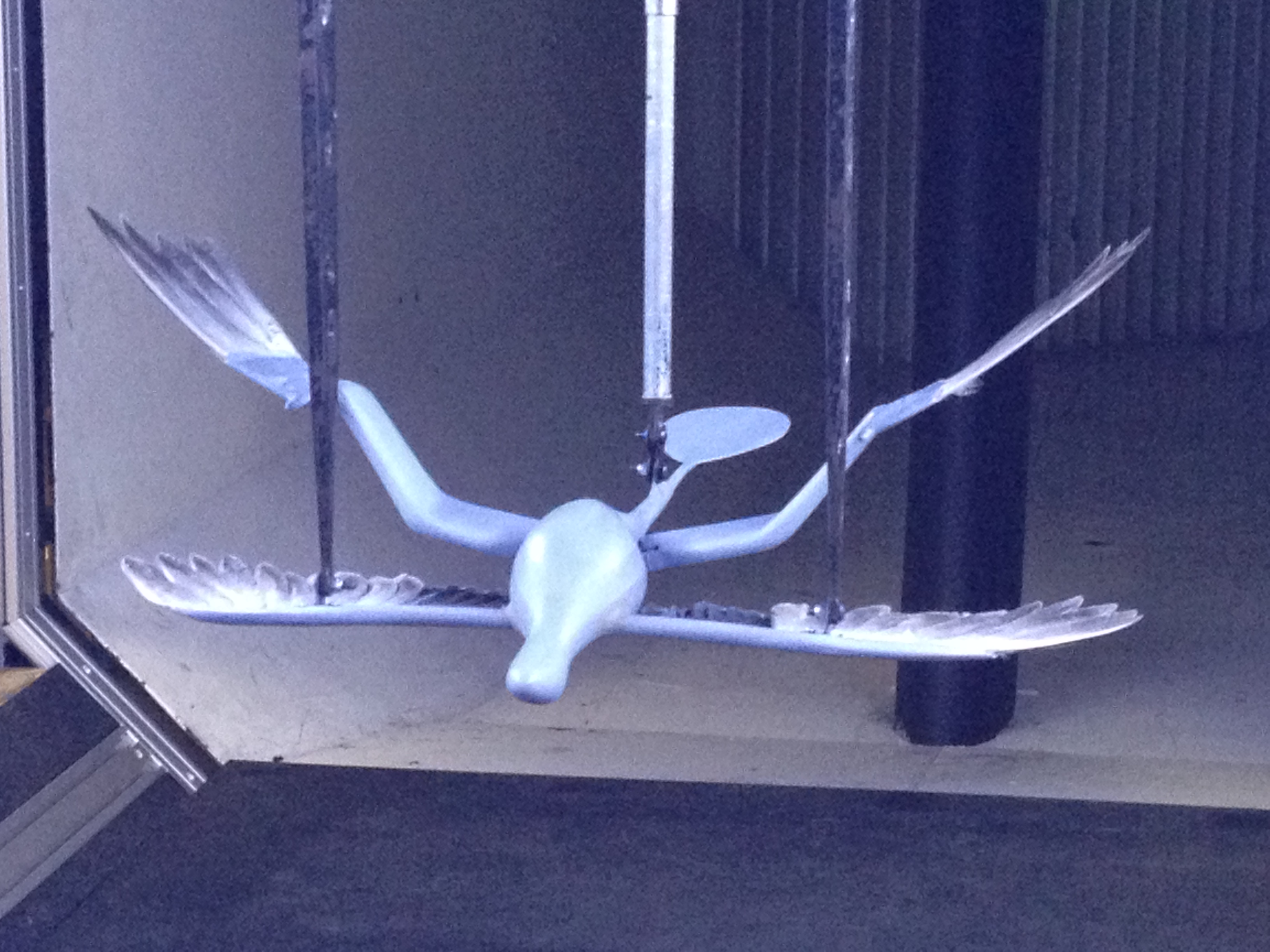

‘Maurice’, the model Microraptor, in a rather undignified pose in the wind tunnel. It was this model that gave that led to the results of the above paper.

Maurice in  a tree

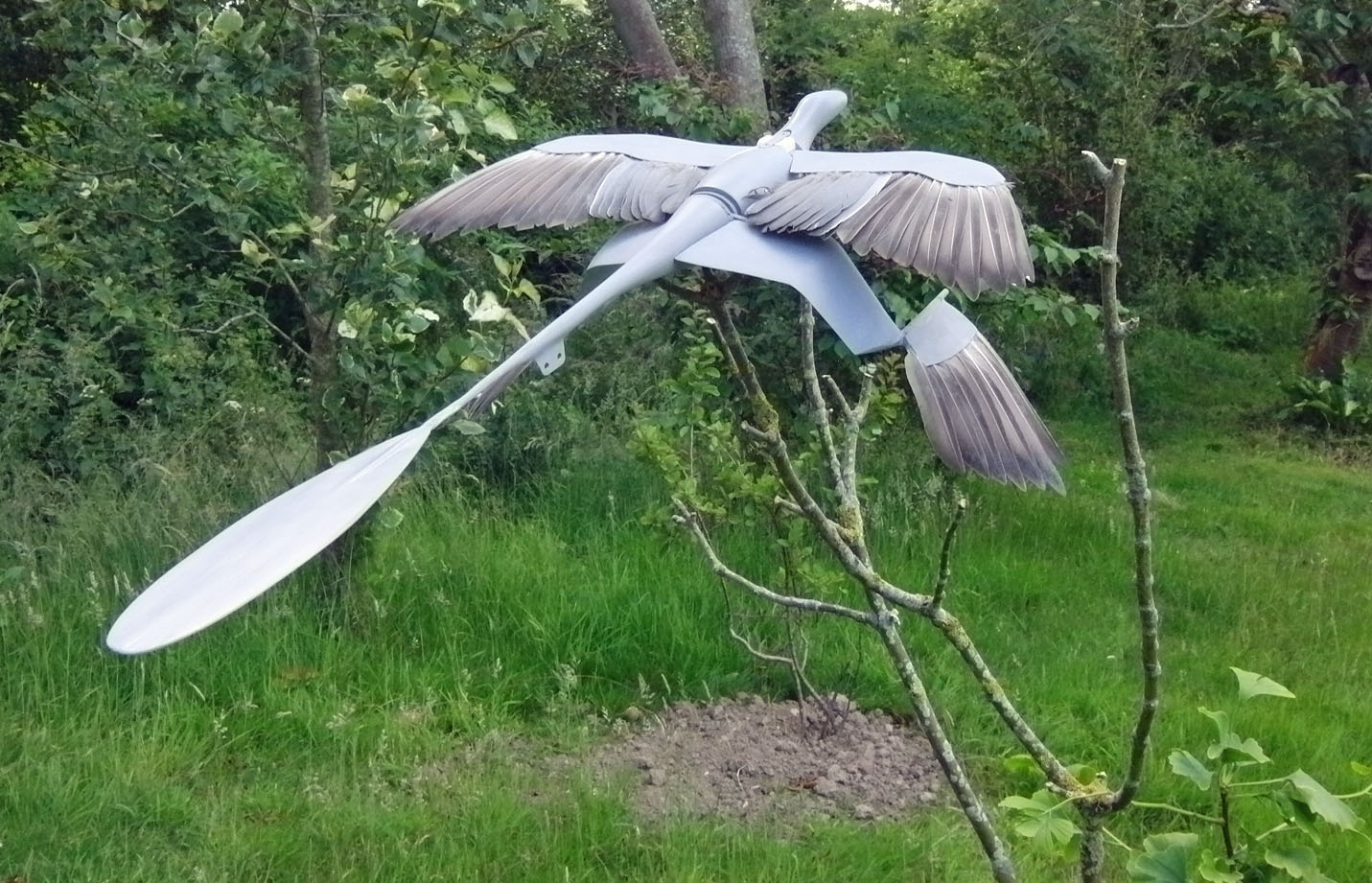

Maurice feeling a little more at home in a gingko tree.

Being a pterosaur

Colin Palmer demonstrating pterosaur wing morphology to students at the University of Bristol. The long wing finger goes out to the left of his hand, while the pteroid is represented to the right of his thumb.

From an earlier life

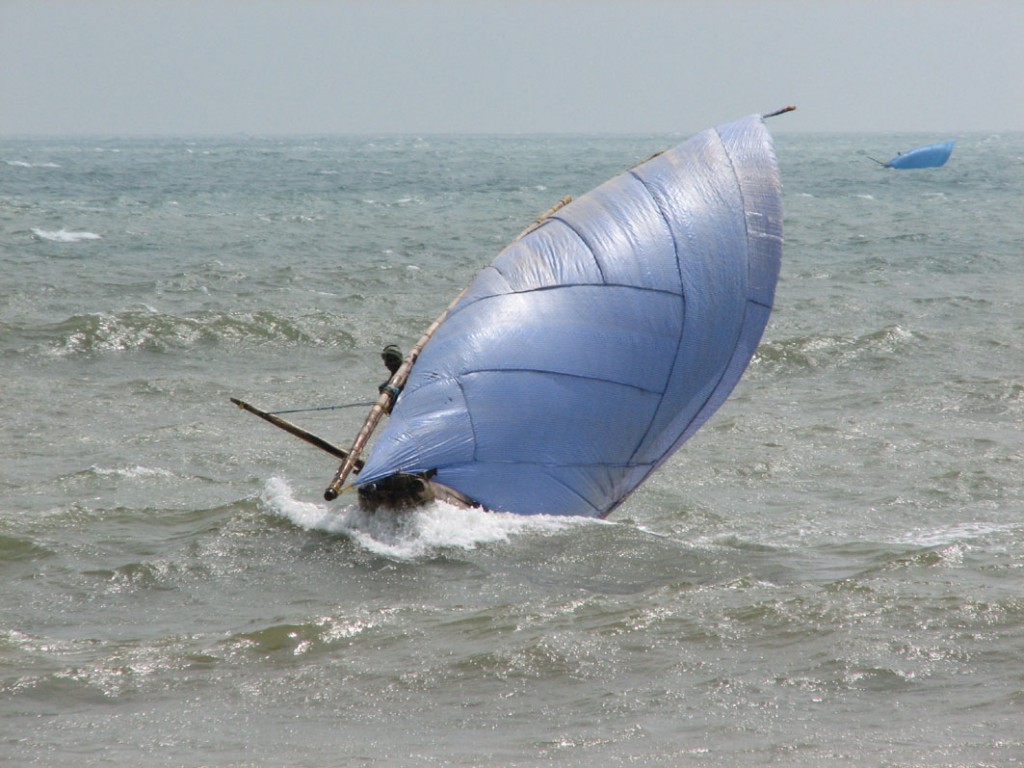

Many years ago (1985) Colin worked with fishermen in India, hoping to help them improve their ability to sail. The way they carry their sails is very reminiscent of the pterosaur wing.
